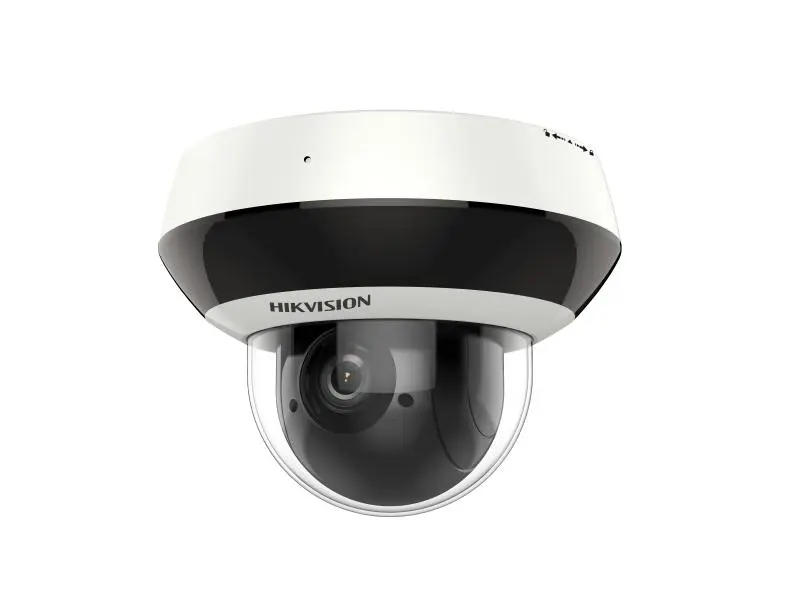

2-inch 4 MP 4x Zoom IR Mini PT Dome Network Camera
2-inch 4 MP 4x Zoom IR Mini PT Dome Network Camera
DS-2DE2A404IW-DE3(C0)(S6)(C)
9.232 EGP
Free delivery on Selective Products
Secure Payments
Hassle-Free Warranty
Lifetime Customer Support
Out of stock
Product Details
Compact Design, Powerful Surveillance.
The DS-2DE2A404IW-DE3(C0)(S6)(C) delivers exceptional 4MP resolution and advanced PTZ capabilities in a compact form factor. Equipped with DarkFighter technology, it ensures clear imaging even in low-light conditions, making it perfect for indoor and outdoor applications where space is limited but performance is critical.
Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 (4MP) |
| Lens | 2.8–12 mm motorized varifocal lens |
| Field of View | Horizontal: 100°–33°, Vertical: 53°–19°, Diagonal: 118°–38° |
| Minimum Illumination | Color: 0.005 Lux @ F1.5, AGC ON; B/W: 0.001 Lux @ F1.5, AGC ON; 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Pan Range | 0° to 330° |
| Tilt Range | -5° to 90° |
| Pan Speed | Configurable, up to 100°/s |
| Tilt Speed | Configurable, up to 80°/s |
| IR Range | Up to 20 meters |
| WDR | 120 dB |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Built-in microphone |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 9.2 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 90% or less (non-condensing) |
| Protection Level | IP66, IK10 |
| Dimensions | Ø130.7 mm × 101.7 mm (Ø5.15″ × 4.00″) |
| Weight | Approx. 530 g (1.17 lb.) |
What’s in the Box
1 × Hikvision DS-2DE2A404IW-DE3(C0)(S6)(C) Camera
1 × Mounting Accessories Kit (screws, anchors, installation template)
1 × Waterproof Cable Gland
1 × Quick Start Guide
Why Choose the DS-2DE2A404IW-DE3(C0)(S6)(C)?
Compact Yet Powerful: Ideal for areas where space is limited but high-quality surveillance is required.
Versatile Installation: Suitable for both indoor and outdoor environments, thanks to its robust design.
Advanced Features: Offers intelligent analytics and superior imaging for comprehensive security coverage.
Flexible Power Options: Supports both 12 VDC and PoE, simplifying installation and integration.
Key Features
High-Quality Imaging: 4MP resolution (2560 × 1440) for detailed video capture.
DarkFighter Technology: Superior low-light performance with minimum illumination of 0.005 Lux (Color) and 0.001 Lux (B/W).
4× Optical Zoom & 16× Digital Zoom: 2.8–12 mm motorized varifocal lens for flexible viewing angles.
Smart IR: Up to 20 meters of infrared night vision for clear images in complete darkness.
Pan & Tilt Functionality: 0° to 330° pan and -5° to 90° tilt range for comprehensive area coverage.
Advanced Video Analytics: Features include face detection, line crossing detection, intrusion detection, and more.
Robust Build: IP66-rated weatherproof and IK10-rated vandal-resistant housing for reliable outdoor use.
Efficient Compression: Supports H.265+, H.265, H.264+, and H.264 video compression formats.
Built-in Microphone: Enables real-time audio monitoring.
Power Options: Supports 12 VDC and PoE (802.3af) for flexible installation.
