4 Port Fast Ethernet Smart POE Switch
4 Port Fast Ethernet Smart POE Switch
DS-3E1105P-EI-V2
0 EGP
The DS-3E1105P-EI V2 is a compact, high-efficiency 4-port Fast Ethernet Smart PoE Switch ideal for IP-camera systems and small network deployments.
Key Features:
- 4 × 10/100 Mbps PoE ports + 1 × 10/100 Mbps uplink port.
- PoE budget of 60 W — supports multiple IP cameras without extra power injectors.
- Up to 300 m long-range PoE transmission in Extend mode — ideal for longer cable runs.
- 6 kV surge protection on PoE ports to safeguard against power spikes.
- Smart-managed features: VLAN (802.1Q), STP/RSTP loop prevention, PoE watchdog and cable fault detection.
Explore our full Network Switches & PoE Devices collection for reliable infrastructure solutions.
Secure Payments
Hassle-Free Warranty
Lifetime Customer Support
Out of stock
Product Details

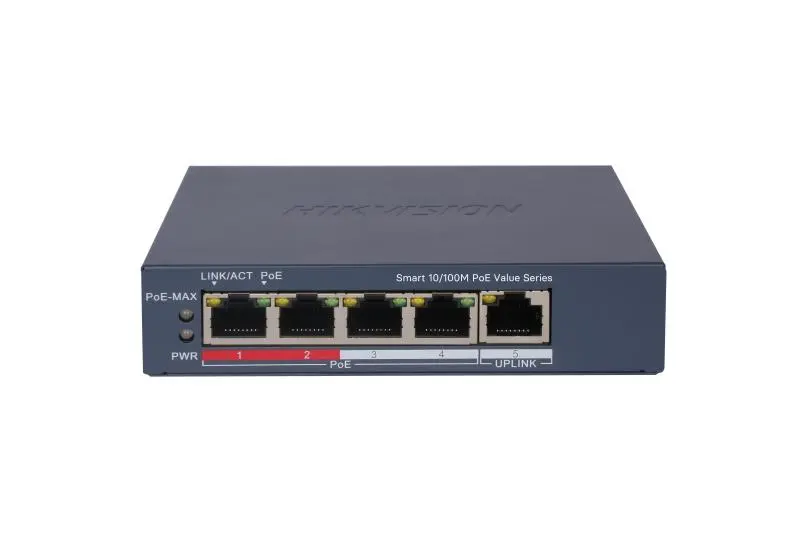

Hikvision DS-3E1105P-EI-V2
5-Port Fast Ethernet Unmanaged PoE Switch with Intelligent Power Management. Smart, Compact, and Reliable Power for IP Surveillance
The DS-3E1105P-EI-V2 from Hikvision is a 5-port Fast Ethernet unmanaged PoE switch designed for small-scale surveillance setups and network expansions. With 4 PoE ports, it delivers both data and power over a single cable to PoE-enabled devices like IP cameras and access points, reducing infrastructure complexity and installation time. This switch is a plug-and-play solution with intelligent power management, overload protection, and port priority—ensuring critical devices stay powered even during high loads.
Key Features
4 × 10/100 Mbps PoE Ports + 1 Uplink Port
Simultaneously transmit data and power to cameras and other PoE devices.
Supports IEEE 802.3af/at
Compatible with a wide range of PoE-powered devices.
PoE Power Budget up to 60W
Adequate to power multiple cameras or access points simultaneously.
Intelligent Power Management
Prevents overload by cutting power to lower-priority ports first.
Plug & Play Installation
No configuration required — just connect and go.
6kV Surge Protection
Enhanced reliability and protection from lightning and power surges.
Metal Housing
Durable and built for continuous 24/7 operation.
| Feature | Specification |
|---|---|
| Downlink Ports | 4 × 10/100 Mbps PoE (RJ45) |
| Uplink Port | 1 × 10/100 Mbps (RJ45) |
| PoE Standard | IEEE 802.3af/at |
| Max PoE Power | 60 W (Max 30 W per port) |
| Switching Capacity | 1 Gbps |
| MAC Address Table | 1K entries |
| Transmission Mode | Store-and-forward |
| Lightning Protection | 6 kV |
| Power Supply | External 48V DC adapter |
| Power Consumption | ≤ 63W |
| Dimensions (W × D × H) | 120 × 100 × 28 mm |
| Weight | ≤ 0.4 kg |
| Operating Temperature | 0°C to 40°C |
What’s in the Box
1 × DS-3E1105P-EI-V2 Switch
Power Adapter
Quick Start Guide
