Product Details
Zoom in on Brilliant Color and Detail — Anytime, Anywhere.

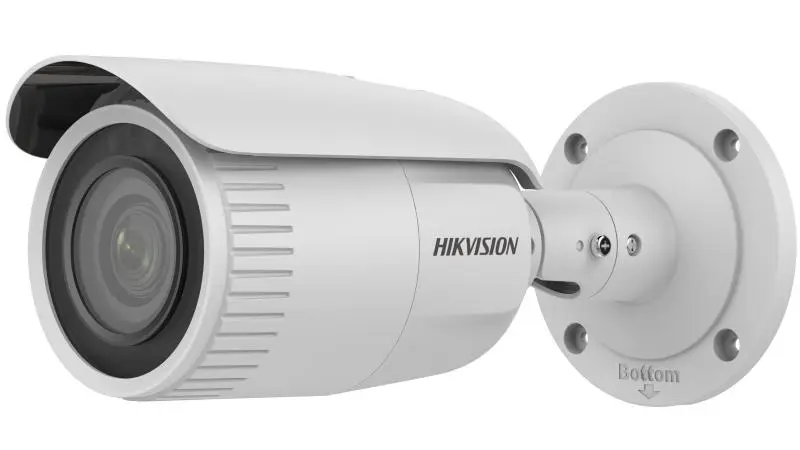

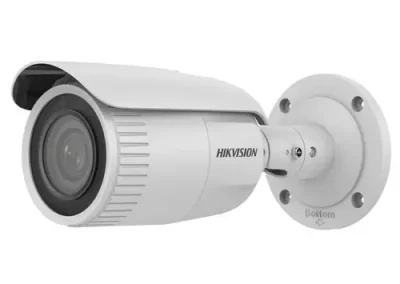

With the DS-2CD1643G0-IZ, experience 4MP ultra-clear footage with vivid full-color imaging day and night, thanks to Hikvision’s cutting-edge ColorVu technology. The motorized zoom lens gives you flexible viewing angles, making it ideal for varied surveillance needs.
Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 (4MP) |
| Lens | Motorized Vari-focal 2.8-12 mm, F1.0 aperture |
| Field of View | Horizontal: 105°–32°, Vertical: 57°–18°, Diagonal: 124°–37° |
| Minimum Illumination | 0.0005 Lux @ F1.0 (Color), 0 Lux with white light |
| Illumination Range | Up to 30 meters (White Light) |
| Wide Dynamic Range | 120 dB True WDR |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Smart Features | Human and Vehicle Detection |
| Audio | Built-in Microphone |
| Storage | microSD/SDHC/SDXC up to 256 GB |
| Power Supply | 12 VDC ± 25%, PoE (802.3af) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Ingress Protection | IP67 |
| Dimensions | Approx. 85 mm × 264 mm |
| Weight | Approx. 900 g |
📦 What’s in the Box
1 × Hikvision DS-2CD1643G0-IZ (2.8-12mm)(C) Camera
1 × Mounting Kit (screws, anchors, installation template)
1 × Waterproof Cable Connector
1 × Quick Start Guide
Why Choose the DS-2CD1643G0-IZ (2.8-12mm)(C)?
Vibrant full-color imaging with flexible zoom capabilities
Intelligent detection reduces false alarms and improves accuracy
Durable IP67 construction for reliable outdoor use
Built-in audio enhances surveillance context
Easy installation with PoE and onboard storage support
Key Features
4MP High-Resolution Imaging: Crystal-clear 2560 × 1440 resolution for detailed video.
ColorVu Technology: Full-color images in ultra-low-light conditions with an ultra-large aperture lens and smart white light illumination.
Motorized Vari-focal Lens (2.8-12mm): Easily adjust the field of view remotely for precise monitoring.
120 dB True WDR: Effectively manages complex lighting environments with high contrast.
Smart Hybrid Light: Combines white light and IR to provide vibrant color without glare.
Built-in Microphone: Records audio alongside video for complete surveillance context.
Deep Learning-Based Smart Detection: Human and vehicle classification to reduce false alarms.
H.265+ Compression: Saves bandwidth and storage without compromising quality.
IP67 Weatherproof Rating: Durable for outdoor installation in harsh weather.
Edge Storage Support: MicroSD card slot supporting up to 256 GB for local backup.
PoE Enabled: Simplifies installation with single-cable power and data transmission.
