DS-2CD1743G0-IZ(2.8-12mm)(C)
6.488,00 EGP
In stock
Product Details
Precision Surveillance with Adaptive Clarity

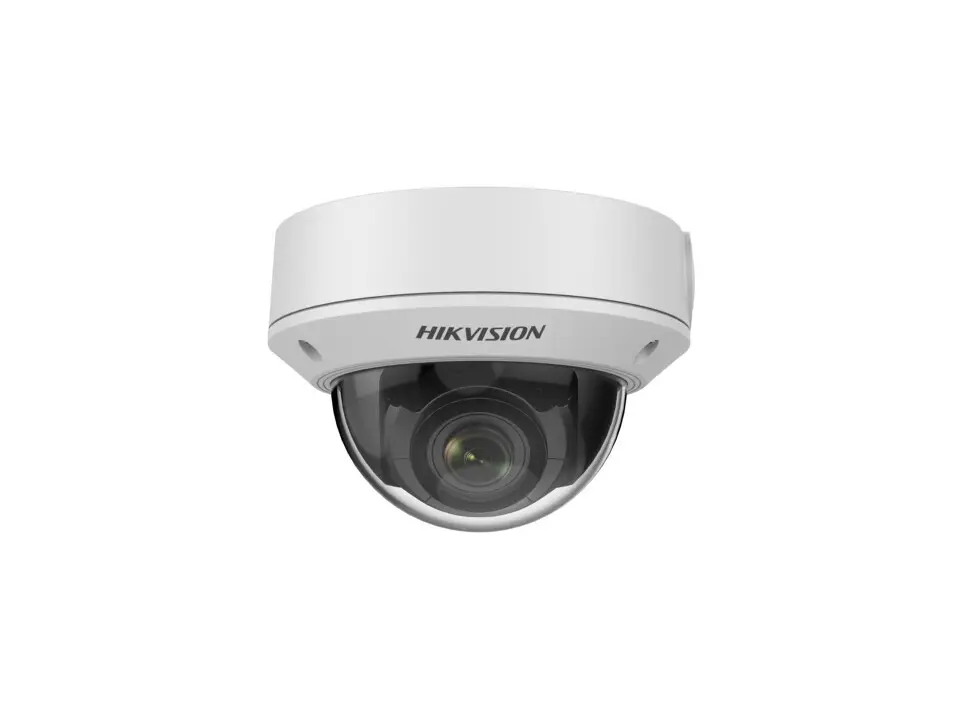

Experience advanced security monitoring with the Hikvision DS-2CD1743G0-IZ. This 4MP dome camera combines high-resolution imaging, a motorized varifocal lens, and robust design to deliver reliable performance in various environments.
Technical Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 (4MP) |
| Lens | Motorized Varifocal 2.8–12mm, F1.6 aperture |
| Field of View | Horizontal: 102°–31°, Vertical: 54°–17°, Diagonal: 123°–35° |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| IR Range | Up to 30 meters |
| WDR | 120 dB |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Audio | -S model: 1 input, 1 output; supports multiple audio codecs |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | 12 VDC ± 25%, PoE (802.3af) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | Ø141 mm × 99.9 mm |
| Weight | Approx. 820 g |
What’s in the Box
-
1 × Hikvision DS-2CD1743G0-IZ (2.8–12mm) Dome Camera
-
1 × Mounting Accessories Kit
-
1 × Quick Start Guide
Why Choose the DS-2CD1743G0-IZ (2.8–12mm)?
-
Flexible surveillance with motorized varifocal lens for easy field of view adjustment.
-
High-resolution sensor combined with WDR and advanced IR for clear images in any lighting.
-
Weatherproof and vandal-resistant construction for reliable outdoor operation.
-
Advanced compression to optimize storage and bandwidth.
-
Edge storage support for local recording and redundancy.
Key Features
-
High-Resolution Imaging: Capture detailed visuals with a 4MP resolution (2560 × 1440), ensuring clarity in every frame.
-
Motorized Varifocal Lens: Adjustable 2.8–12mm lens allows for flexible field of view settings, from wide-angle to narrow focus, accommodating diverse surveillance needs.
-
Wide Dynamic Range (WDR): 120 dB WDR ensures clear imaging in environments with strong backlighting, capturing details in both bright and dark areas.
-
EXIR 2.0 Infrared Technology: Advanced IR technology provides up to 30 meters of night vision, ensuring reliable monitoring in low-light conditions.
-
Robust Design: IP67-rated for water and dust resistance and IK10-rated for vandal resistance, making it suitable for harsh outdoor environments.
-
Efficient Video Compression: Supports H.265+ compression technology, reducing bandwidth and storage requirements without compromising video quality.
-
Edge Storage: Supports microSD/SDHC/SDXC cards up to 256 GB for local storage.
Additional information
| Weight | 0,0 kg |
|---|
