Product Details
Precision Surveillance with Smart Detection and Powerful Clarity.

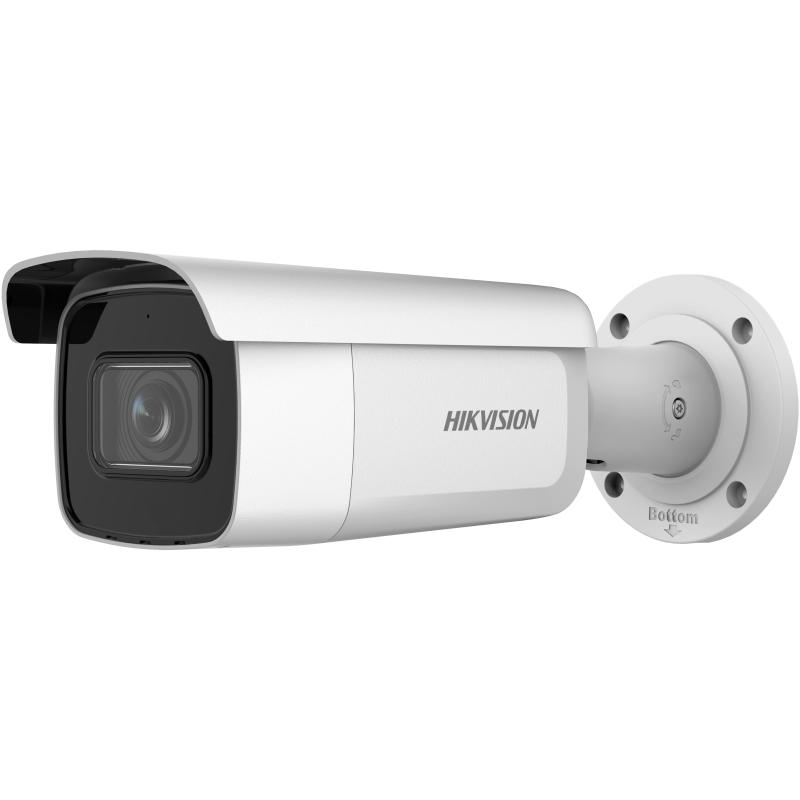

The DS-2CD2663G2-IZS empowers your security system with 6MP ultra-HD resolution, smart motion detection, and a motorized zoom lens for flexible coverage. Built for both performance and durability, it ensures you never miss a critical moment—day or night, rain or shine.
Technical Specifications
Feature | Details |
---|---|
Image Sensor | 1/2.4″ Progressive Scan CMOS |
Max. Resolution | 3072 × 2048 (6MP) |
Lens | Motorized Vari-focal 2.8–12 mm, autofocus |
Field of View | Horizontal: 109°–33°, Vertical: 56°–19° |
Minimum Illumination | 0.003 Lux @ F1.6 (Color), 0 Lux with IR |
IR Range | Up to 50 meters |
WDR | 120 dB True WDR |
Compression | H.265+/H.265/H.264+/H.264 |
Smart Detection | Human/vehicle classification, line crossing, etc. |
Audio | Built-in microphone |
Storage | microSD/SDHC/SDXC up to 256 GB |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
Protection Level | IP67, IK10 |
Dimensions (approx.) | 105 mm × 300 mm |
Weight | Approx. 1.5 kg |
What’s in the Box
-
1 × Hikvision DS-2CD2663G2-IZS (2.8–12mm) Camera
-
1 × Mounting Bracket Kit (screws, wall plugs, template)
-
1 × Waterproof Cable Gland
-
1 × Quick Start Guide
Why Choose This Camera?
-
Combines high resolution, intelligent analytics, and rugged construction
-
Reduces false alarms with advanced human and vehicle detection
-
Perfect for outdoor areas such as parking lots, campuses, warehouses, and perimeters
-
Easy to deploy with PoE and remote zoom/focus functionality
-
Built-in audio enhances situational awareness
Key Features
-
6MP High-Definition Imaging
Capture sharp and detailed video with 3072 × 2048 resolution for accurate monitoring. -
Motorized Vari-focal Lens (2.8–12mm)
Remotely adjust the viewing angle to focus on specific zones without manual handling. -
AcuSense Technology
Uses deep learning algorithms to distinguish people and vehicles from other objects, reducing false alarms. -
120 dB True WDR (Wide Dynamic Range)
Maintains clear images even in high-contrast lighting conditions such as backlight or glare. -
EXIR 2.0 Infrared Night Vision
Up to 50 meters of high-quality night imaging with efficient IR coverage. -
Built-in Microphone
Enables audio recording for added surveillance detail. -
Smart Events Detection
Includes motion detection, line crossing, intrusion detection, and region entrance/exit. -
Efficient H.265+ Compression
Reduces bandwidth and storage costs while maintaining video quality. -
IP67 & IK10 Rated
Weatherproof and vandal-resistant housing ideal for outdoor environments. -
Edge Storage
Supports microSD cards up to 256 GB for onboard recording.
Additional information
Weight | 0,0 kg |
---|
