Product Details
Professional Surveillance, Powered by AI

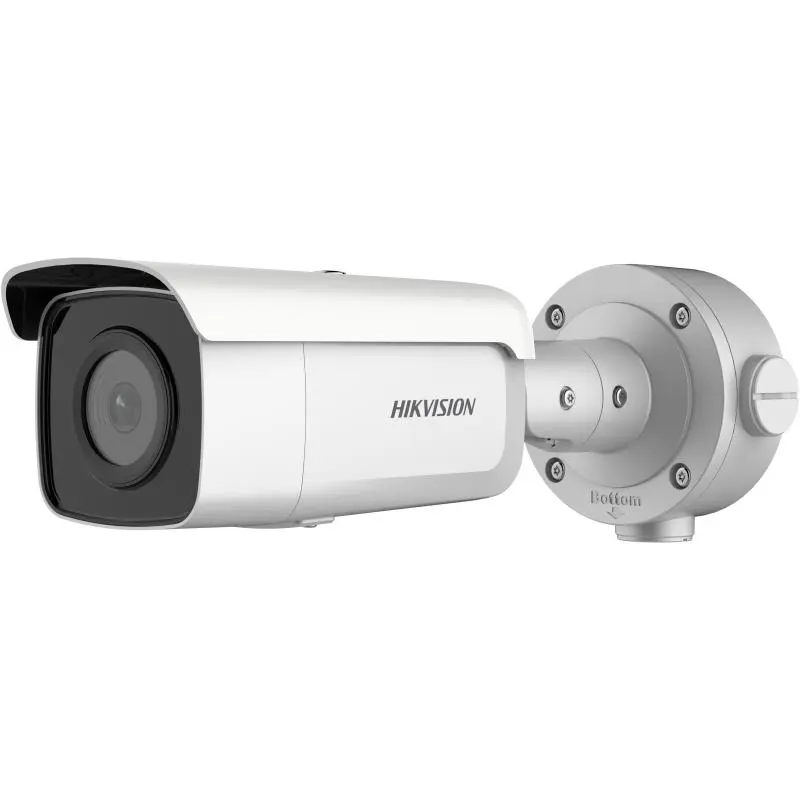

The DS-2CD3T56G2-4IS is a high-performance 5 MP bullet network camera designed to provide precise, intelligent monitoring in outdoor environments. With AcuSense-powered motion detection, powerful IR night vision, and 120 dB WDR, it guarantees reliable security 24/7. Its long-range 6mm lens captures distant scenes with clarity, making it ideal for perimeter protection, parking lots, and entrances.
Key Features
-
5 MP High-Definition Imaging
Capture crystal-clear footage with 2560 × 1920 resolution for precise identification and scene detail.
-
AcuSense Technology (Powered by Deep Learning)
Focuses on human and vehicle targets—minimizing false alarms and improving response accuracy.
-
Strong Night Vision with EXIR 2.0
Infrared illumination up to 80 meters, ensuring clear visibility in complete darkness.
-
Wide Dynamic Range (WDR) 120 dB
Delivers sharp images in environments with both bright and dark areas (e.g. entranceways, windows).
-
Smart Detection Features
Motion Detection 2.0, Intrusion, Line Crossing, and region entrance/exit alerts with human/vehicle classification.
-
Weatherproof & Dustproof (IP67)
Built tough to operate reliably in outdoor conditions—rain, dust, heat, and cold.
-
Efficient Compression
Reduces bandwidth and storage costs with H.265+, H.265, H.264+, and H.264 support.
Feature | Specification |
---|---|
Image Sensor | 1/2.7″ Progressive Scan CMOS |
Resolution | 2560 × 1920 (5 MP) |
Minimum Illumination | 0.003 lux (color), 0 lux with IR |
Lens Type | Fixed 6 mm |
Field of View | Horizontal: ~49°, Vertical: ~37°, Diagonal: ~60° |
IR Range | Up to 80 meters (EXIR 2.0) |
WDR | 120 dB |
Video Compression | H.265+, H.265, H.264+, H.264 |
Smart Features | Human/vehicle classification, motion detection 2.0 |
Audio | Built-in microphone (Mono) |
On-board Storage | microSD slot (up to 512 GB) |
Network Protocols | TCP/IP, HTTP, HTTPS, FTP, RTSP, NTP, IPv4/IPv6 |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 6.5 W |
Operating Conditions | -30°C to +60°C, ≤95% RH |
Ingress Protection | IP67 |
Dimensions | Approx. 105 × 290 mm |
Weight | Approx. 950 g |
What’s in the Box
-
1 × Hikvision DS-2CD3T56G2-4IS (6mm) Camera
-
Waterproof Connector Cover
-
Mounting Screws and Accessories
-
Quick Start Guide
