DS-2CD3T86G2-4IS(6mm)(C) Bullet Camera. 8MP IR Fixed Lens
The DS-2CD3T86G2-4IS(6mm)(C) is an 8MP fixed-lens bullet camera engineered for high-definition outdoor surveillance. It delivers crisp 4K imaging, intelligent detection, and long-range IR illumination to ensure maximum visibility and security at all times.
Key Features:
- 8MP (3840 × 2160) resolution for ultra-clear video
- 6mm fixed lens for focused long-range coverage
- IR night vision up to 60 m for low-light monitoring
- Smart human/vehicle detection powered by AI
- IP67 weatherproof housing for outdoor durability
- H.265+ compression for efficient bandwidth use
- Built-in microphone for audio recording
- Power over Ethernet (PoE) support
Explore more Network Cameras
Free delivery on Selective Products
Secure Payments
Hassle-Free Warranty
Lifetime Customer Support
In stock
Product Details

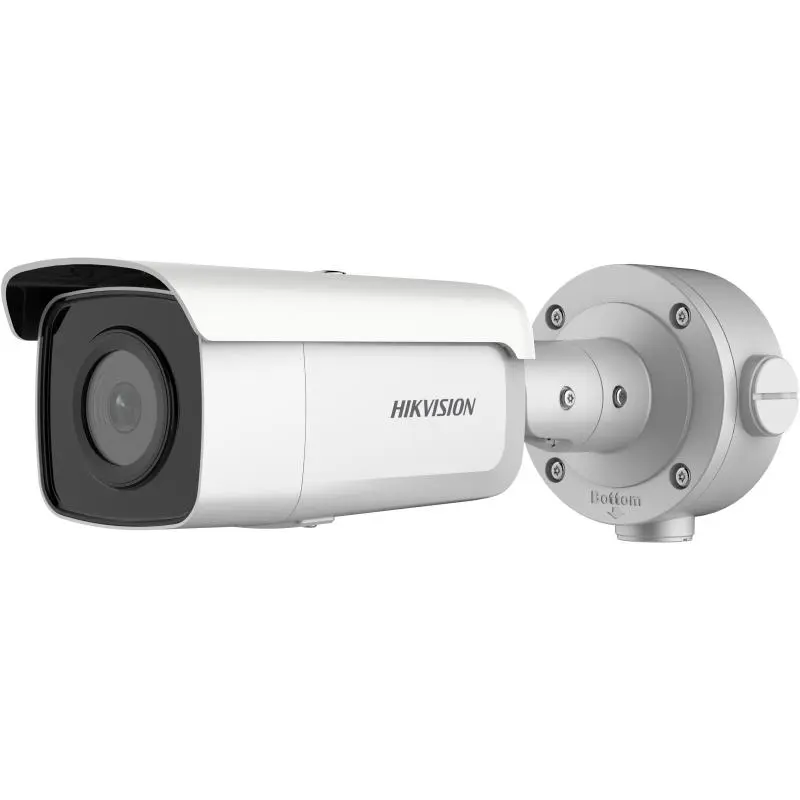

Hikvision DS‑2CD3T86G2‑4IS (6 mm)(C)
8 MP AcuSense Fixed Infrared Bullet Camera (6 mm Lens, Competitive Version)
Powerful Deep‑Learning Intelligence and 4K Clarity
AcuSense AI Detection
Integrated deep‑learning filters distinguish humans and vehicles from irrelevant motion—dramatically reducing false alarms and boosting security efficiency.
Stunning 4K Imaging
8 MP sensor delivers crisp, ultra-high-resolution video, perfect for detailed surveillance and accurate identification in all conditions.
DarkFighter Low-Light Capability
Exceptional night performance with color and infrared modes—down to 0.003 lux with F1.6 aperture—and IR illumination up to 90 m.
120 dB True WDR
Delivers clear, balanced images even in high-contrast lighting or direct sunlight scenes.
Durable, Weatherproof Design
IP67-rated for dust and water resistance—ideal for outdoor installation in all climates.
Efficient Video Compression
Supports H.265+, H.265, H.264+, and H.264 encoding—helping minimize bandwidth usage and storage requirements.
Advanced HEOP Platform
Hikvision Embedded Open Platform supports third-party app deployment, powered by 1.5 TOPS AI compute, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC.
| Feature | Specification |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 (8 MP) |
| Min. Illumination | Color: 0.003 lux (F1.6, AGC ON); B/W: 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| WDR | 120 dB True WDR |
| Lens | Fixed 6 mm, FOV: ~51° H / 28° V / 60° diagonal |
| DORI Range (6 mm) | Detection: 183 m / Observation: 72 m / Recognition: 36 m / Identification: 18 m |
| IR Illumination | Smart IR, up to 90 m (850 nm) |
| Color-to-IR Switch | Auto IR cut filter |
| Video Streaming | Up to 4 streams (Main, Sub, 3rd, 4th as supported) |
| Main Stream FPS | 50 Hz: 25 fps; 60 Hz: 24 fps @ 4K |
| Compression | H.265+, H.265, H.264+, H.264; MJPEG supported on some streams |
| ROI Support | 5 fixed regions per stream; target cropping |
| Audio | Mono; codecs: G.711, G.722.1, G.726, MP2L2, MP3, AAC‑LC |
| Audio Bit Rate | Up to 320 kbps (depending on codec) |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, RTSP, NTP, IPv4/IPv6, QoS, 802.1X, SNMP, etc. |
| Live View | Up to 6 simultaneous channels |
| Storage | microSD up to 512 GB; NAS/FTP supported; ANR enabled |
| AI Events | Human/vehicle detection, perimeter protection, face capture, crowd detection, unattended baggage, object removal, defocus and audio exceptions |
| Security & Encryption | HTTPS, TLS, IP filtering, audit logs, password protection |
| Users & Access Levels | 32 users across admin/operator/user roles |
| Power Supply | 12 VDC ±25% @ max 14 W or PoE 802.3at up to ~16 W |
| Operating Conditions | –30 °C to +60 °C; ≤ 95% non‑condensing humidity |
| Ingress Protection | IP67 |
| Dimensions | Φ105 mm × 325.5 mm |
| Weight | Approx. 1.11 kg (camera only) |
What’s in the Box
- 1 × DS‑2CD3T86G2‑4IS (6 mm) bullet camera
- Mounting bracket and screws
- Waterproof connector cover
- Quick Start Guide
