Product Details

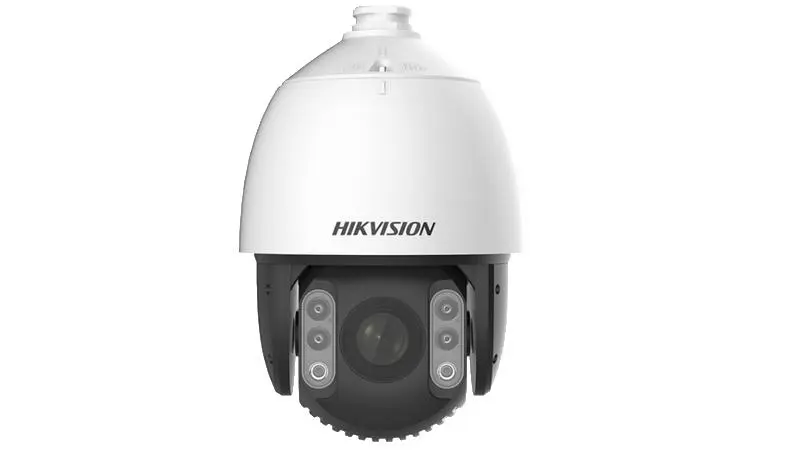

The Hikvision DS-2DE7A245IX-AE/S1 is a professional-grade PTZ dome camera built for wide-area surveillance with remarkable 45× optical zoom and advanced AI-powered tracking. Perfect for cities, borders, stadiums, and industrial perimeters, it delivers sharp 4 MP video, up to 250 meters of IR visibility, and precise control even in extreme weather.
This camera is engineered for reliability, clarity, and efficiency, using deep learning algorithms to intelligently identify threats and minimize false alarms.
Key Features
-
4 MP High-Definition Imaging
Captures clear details with a 1/2.8″ progressive scan CMOS sensor at up to 2560 × 1440 resolution.
-
Powerful 45× Optical Zoom + 16× Digital Zoom
Focus on distant subjects without losing image quality.
-
Up to 250 m IR Night Vision
Maintain visibility in complete darkness using smart adaptive IR LEDs.
-
Smart Tracking with Deep Learning AI
Automatically follows moving targets, reduces false positives in event detection.
-
Enhanced Imaging with True WDR, BLC, and 3D DNR
Balanced exposure and noise-free video even in complex lighting environments.
-
Rugged Build — IP66 Rated
Built to survive rain, dust, and harsh outdoor environments.
-
Multi-Protocol Support
Integrates easily with major VMS systems, supports ONVIF and ISAPI.
Feature | Specification |
---|---|
Image Sensor | 1/2.8″ Progressive Scan CMOS |
Effective Pixels | 2560 × 1440 (4 MP) |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC On), B/W: 0.001 Lux; 0 Lux with IR |
Lens | 3.95 – 177.75 mm |
Zoom | 45× Optical, 16× Digital |
Field of View | 58.6°–1.4° (Horizontal) |
Pan Range | 360° endless |
Tilt Range | -15° to 90° (auto flip) |
Pan Speed | Manual: 0.1–160°/s; Preset: 240°/s |
Tilt Speed | Manual: 0.1–120°/s; Preset: 200°/s |
IR Distance | Up to 250 meters |
WDR | 120 dB |
Day/Night | Auto-switch with IR cut filter |
Image Enhancements | BLC, HLC, 3D DNR, Defog |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
Smart Features | Line crossing, intrusion detection, region entrance/exit, face detection, auto tracking |
Audio I/O | 1 input, 1 output |
Alarm I/O | 2 inputs, 1 output |
Network Interface | 1 × RJ45 10M/100M Ethernet |
Onboard Storage | microSD/SDHC/SDXC slot (up to 256 GB) |
Power Supply | 24 VAC or Hi-PoE |
Power Consumption | Max. 60 W |
Protection | IP66-rated, TVS 6kV lightning protection |
Operating Temperature | -40°C to +70°C |
Dimensions | Φ266.6 mm × 410 mm |
Weight | Approx. 8 kg |
What’s in the Box
-
1 × DS-2DE7A245IX-AE/S1 PTZ Camera
-
Mounting accessories (screws, bracket)
-
Weatherproof connector kit
-
Quick start guide and installation manual
