Product Details
Description

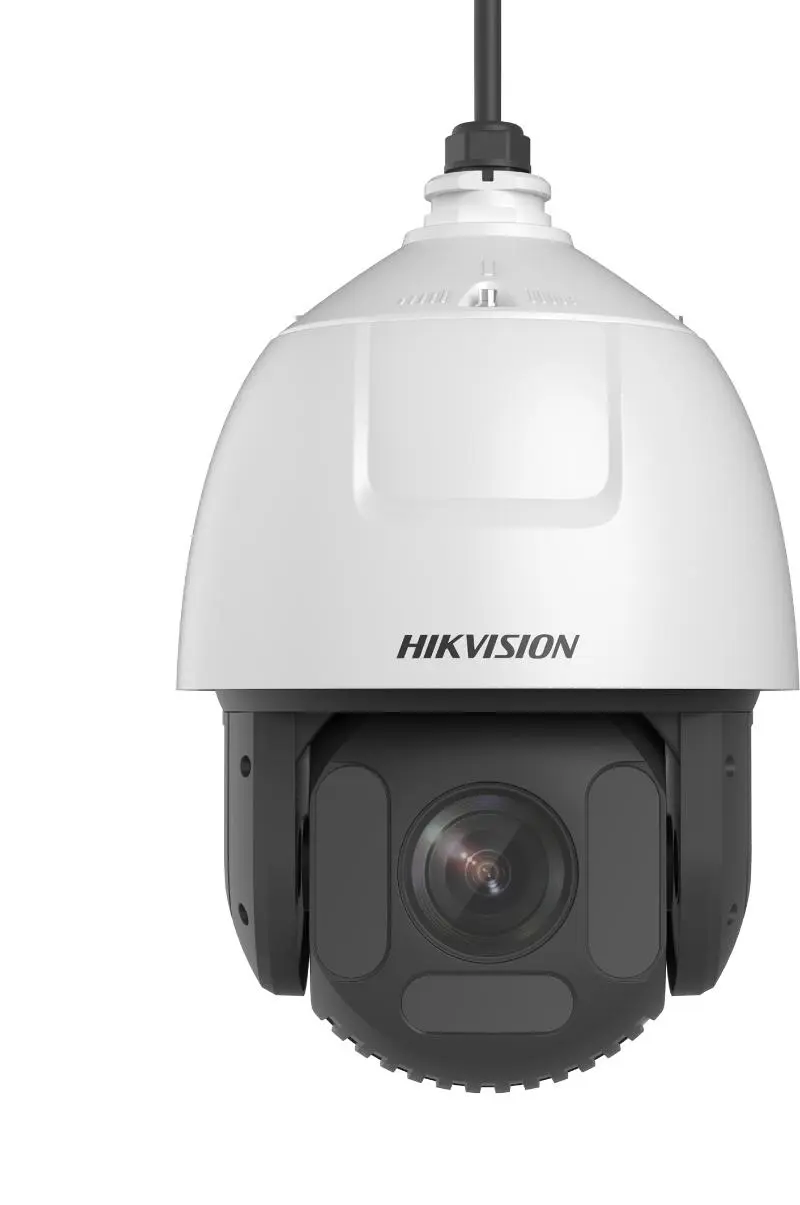

The Hikvision DS-2DF7C432IXR-AEL(T5) is a high-performance speed dome PTZ camera engineered for demanding large-area surveillance. With its 32× optical zoom, powerful IR illumination up to 500 meters, and advanced AI-driven features, it delivers razor-sharp imaging and intelligent monitoring around the clock.
Built for critical infrastructure, public spaces, transportation hubs, and high-security areas, this camera stands out for its AI-powered object tracking, ultra-low light imaging, and weatherproof durability.
Key Features
-
4 MP Resolution with 1/1.8” Progressive Scan CMOS
Delivers stunningly clear video even in fast-action or low-light scenes.
-
32× Optical Zoom + 16× Digital Zoom
Zoom in with precision on distant targets without losing detail.
-
Ultra-Low Light Performance
Smart imaging in near-total darkness, enabled by advanced sensor and IR tech.
-
Up to 500 m IR Range
Built-in IR illuminators ensure visibility in total darkness over vast distances.
-
AI-Driven Object Tracking
Smart tracking, perimeter protection, and object classification via Deep Learning.
-
WDR, BLC, and 3D DNR
Handles challenging lighting conditions for balanced, noise-free images.
-
Weather & Vandal-Resistant (IP67, IK10)
Built to withstand harsh environments and impacts.
-
Flexible Integration
Supports ONVIF, ISAPI, and multi-protocol streaming for seamless system compatibility.
Feature | Specification |
---|---|
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Resolution | 2560 × 1440 (4 MP) |
Minimum Illumination | Color: 0.005 Lux @ F1.5; B/W: 0.001 Lux; 0 Lux with IR |
Lens | 6.5–208 mm, 32× optical zoom |
Digital Zoom | 16× |
Field of View | 60.5° – 2.4° (Horizontal) |
Pan Range | 360° endless |
Tilt Range | -20° to 90° |
Pan/Tilt Speed | Pan: 0.1–210°/s, Tilt: 0.1–150°/s |
IR Distance | Up to 500 m |
WDR | 120 dB |
Day/Night Switching | IR cut filter |
Image Enhancements | BLC, HLC, 3D DNR, Defog |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
Smart Features | Face detection, line crossing, intrusion, object classification |
Audio I/O | 1 input, 1 output |
Alarm I/O | 2 inputs, 1 output |
Network Interface | 1 × RJ45 10M/100M Ethernet |
Storage | microSD/SDHC/SDXC slot (up to 256 GB) |
Power Supply | 24 VAC or Hi-PoE |
Power Consumption | Max. 60 W |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Operating Temp | -40°C to +70°C |
Dimensions | Φ266.6 mm × 410 mm |
Weight | Approx. 8.5 kg |
What’s in the Box
-
1 × DS-2DF7C432IXR-AEL(T5) Camera
-
Power and video connectors
-
Mounting bracket and hardware
-
Waterproof kit
-
User manual and installation guide
